Mega 2560 board compatible with usb cable | Arduino development board Snet

The MEGA 2560 is designed for more complex projects. With 54 digital I/O
pins, 16 analog inputs and a larger space for your sketch it is the recommended
board for 3D printers and robotics projects. This gives your projects plenty of room
and opportunities.

Technical Specifications:
Microcontroller ATmega2560
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 54 (of which 15 provide PWM output)
Analog Input Pins 16
DC Current per I/O Pin 20 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 256 KB of which 8 KB used by bootloader
SRAM 8 KB
EEPROM 4 KB
Clock Speed 16 MHz
LED_BUILTIN 13
Length 101.52 mm
Width 53.3 mm
Weight 37 g

Description

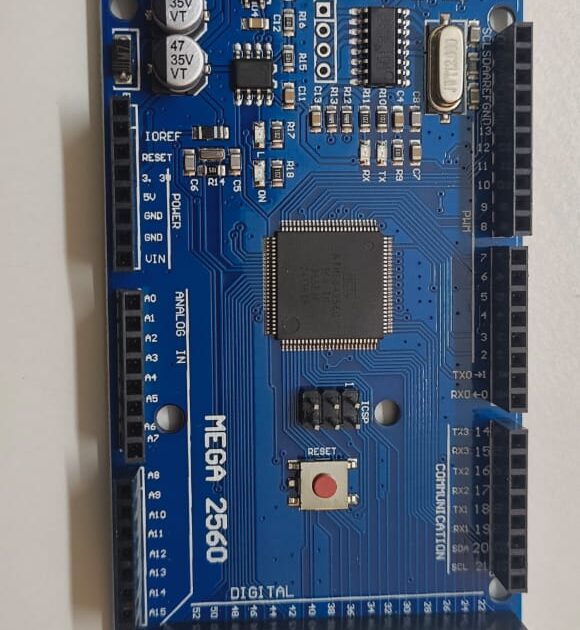

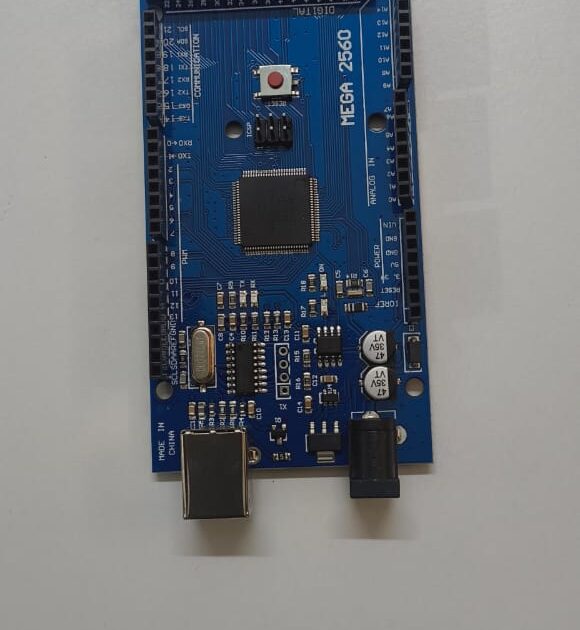

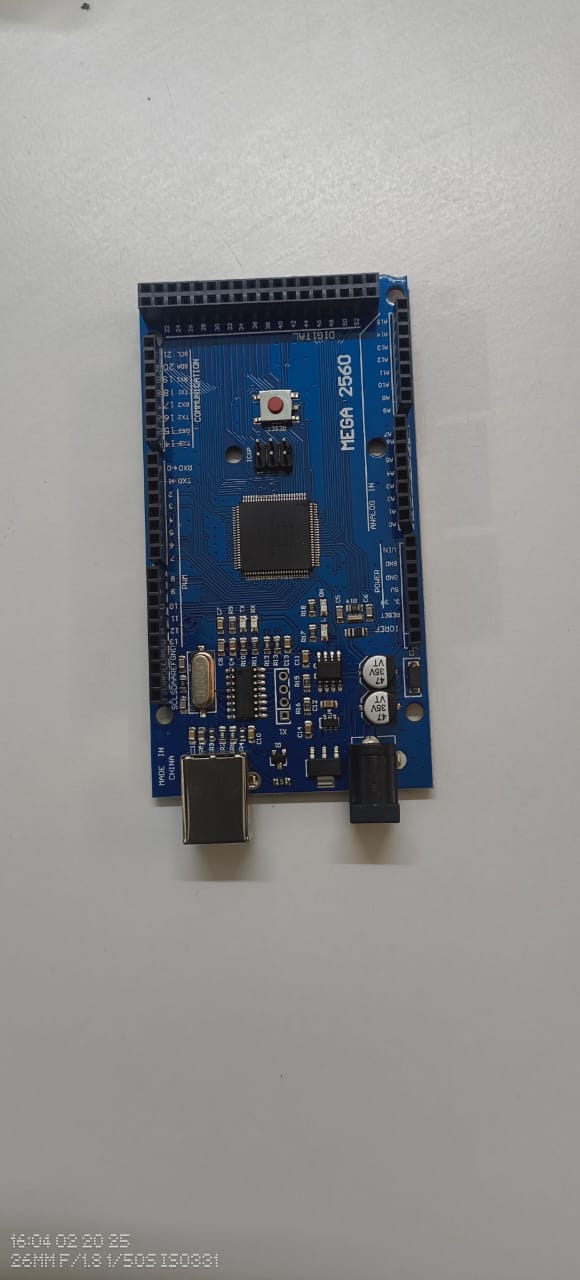

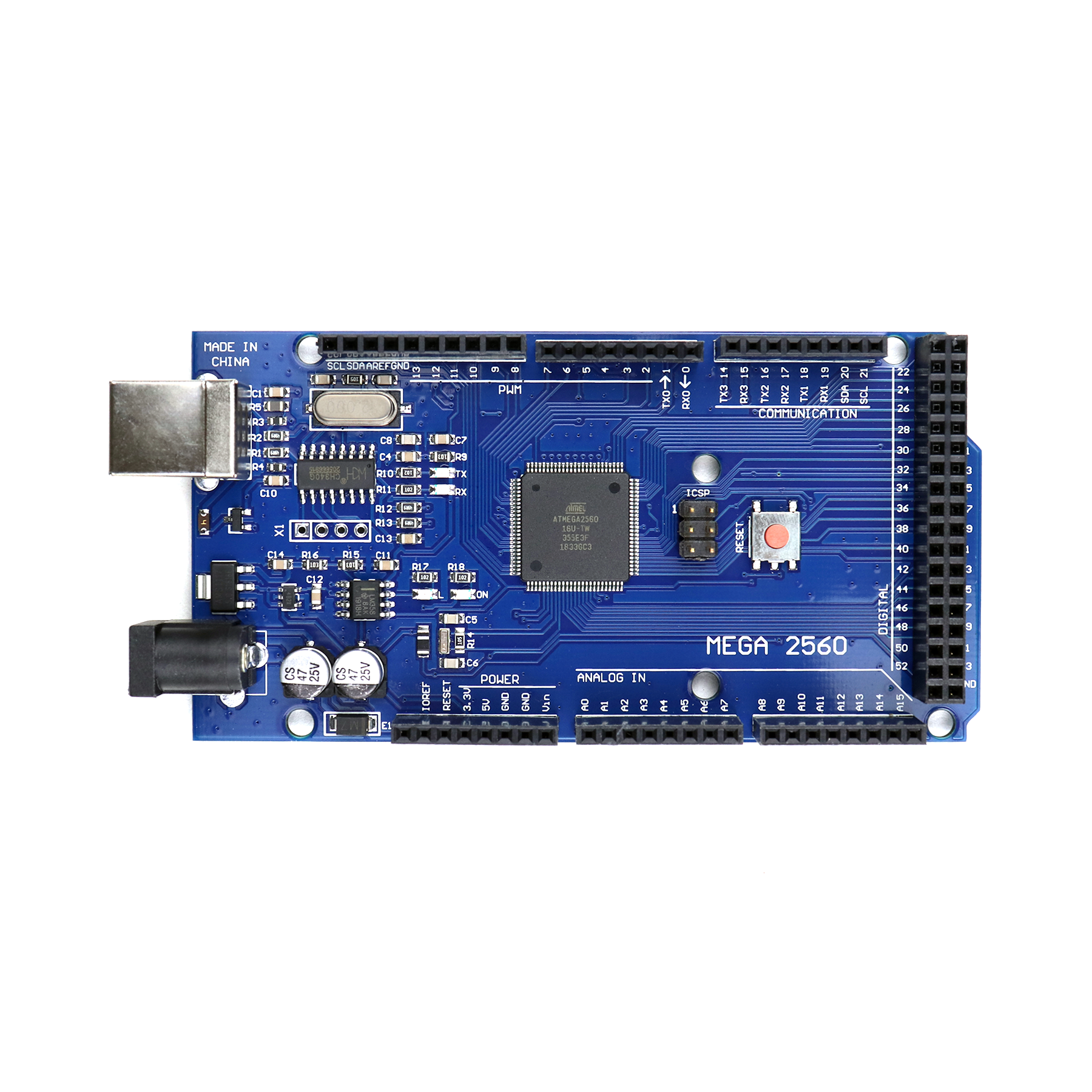

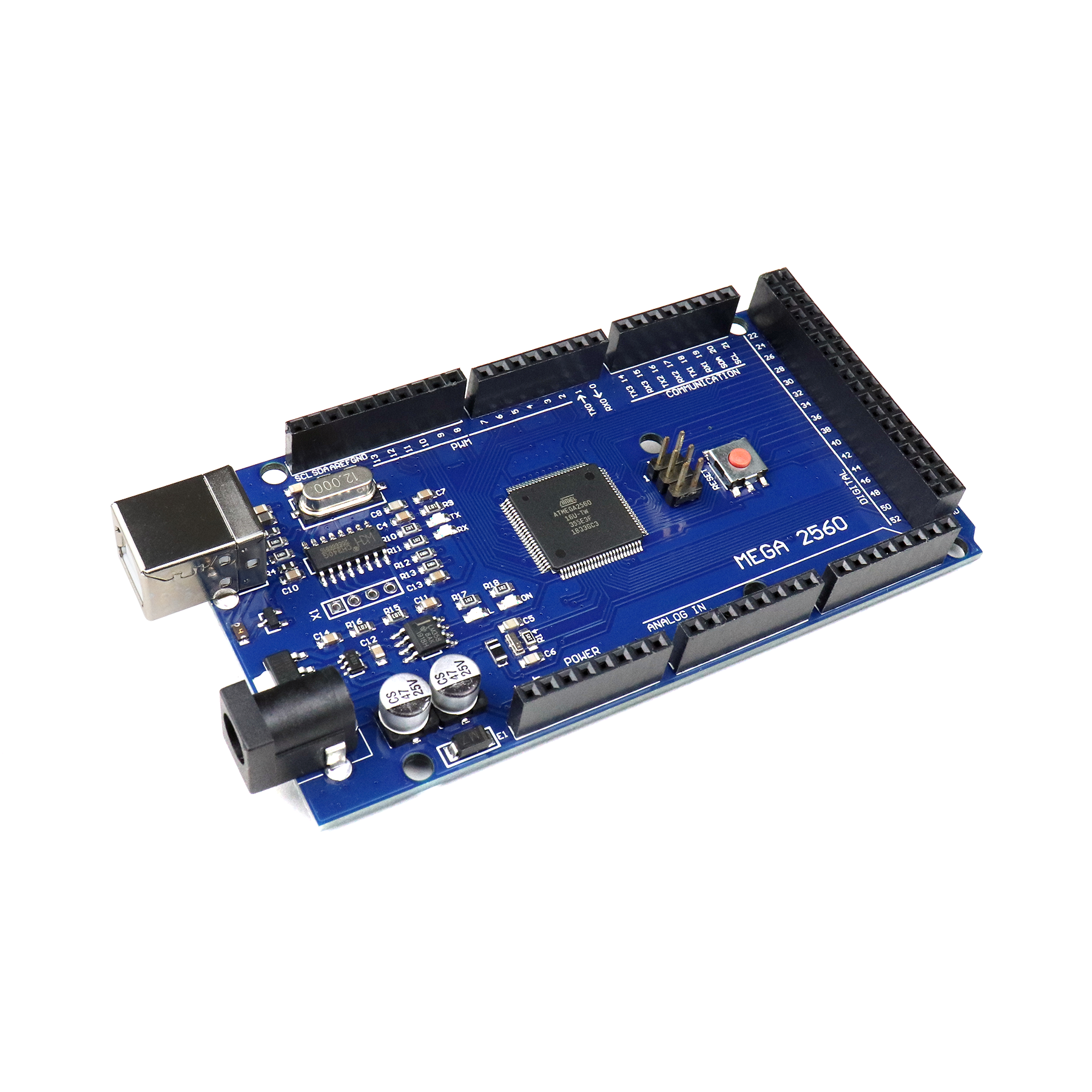

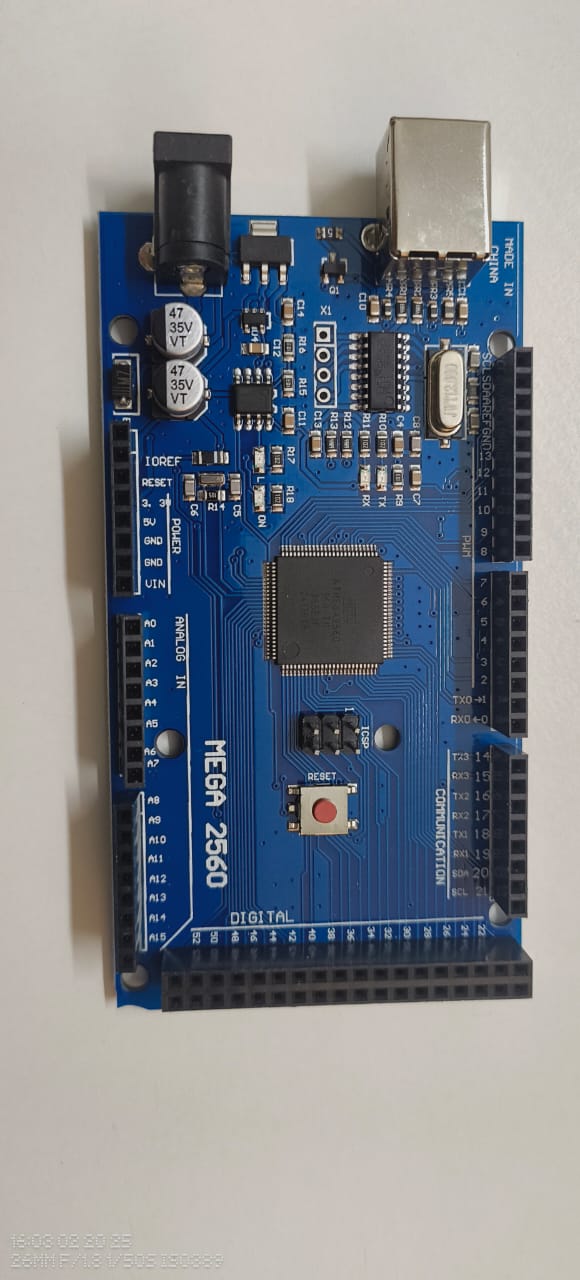

The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54
digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs
(hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP
header, and a reset button. It contains everything needed to support the microcontroller; simply
connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get
started. The Mega 2560 board is compatible with most shields designed for the Uno and the
former boards Duemilanove or Diecimila.
The Mega 2560 is an update to the Arduino Mega, which it replaces.
